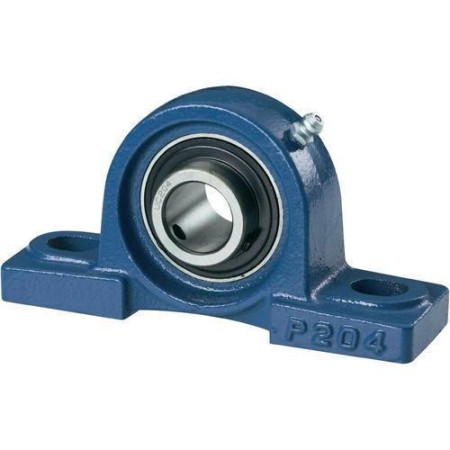

UCP204 – Pillow Block Bearing |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ???? Main Dimensions |
|
|
|
|
|
|
|
|
|
|
|
| Bearing Number: UCP204 |
|
|
|
|
|
| Insert Bearing: UC204 |
|
|
|
|
|
| Housing Type: P204 |
|
|
|
|
|
| Shaft (Bore Diameter): 20 mm |
|
|
|
|
|
| Centre Height: ~33 mm |
|
|
|
|
|
| Base Length: ~127 mm |
|
|
|
|
|
| Bolt Size: M10–M12 (approx.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ⚙️ Performance Specifications |
|
|
|
|
|
|
|
|
|
|
|
| Dynamic Load Rating (Cr): ~19.5 kN |
|
|
|
|
|
| Static Load Rating (Cor): ~11.4 kN |
|
|
|
|
|
| Fatigue Load Limit: ~0.40 kN (approx.) |
|
|
|
|
|
| Speed Limit (Grease): ~4,800 RPM |
|
|
|
|
|
| Speed Limit (Oil): ~5,800 RPM |
|
|
|
|
|
| Lubrication: Pre-greased (sealed type) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Features |
|
|
|
|
|
|
|
|
|
|
|
| Medium load capacity bearing unit |
|
|
|
|
|
| Strong cast iron housing body |
|
|
|
|
|
| Self-aligning insert bearing system |
|
|
|
|
|
| Dust and dirt protection sealing |
|
|
|
|
|
| Smooth and stable rotation |
|
|
|
|
|
| Low friction operation |
|
|
|
|
|
| Easy mounting and replacement |
|
|
|
|
|
| Long service life |
|
|
|
|
|
| Low maintenance requirement |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ⚙️ Applications (8+) |
|
|
|
|
|
|
|
|
|
|
|
| Industrial electric motor |
|
|
|
|
|
| Light–medium conveyor system |
|
|
|
|
|
| Packaging machine |
|
|
|
|
|
| Textile machinery |
|
|
|
|
|
| Water pump system |
|
|
|
|
|
| Light crusher machine |
|
|
|
|
|
| Agricultural machinery |
|
|
|
|
|
| Factory production line roller |
|
|
|
|
|
| Workshop machinery |
|
|
|
|
|
| General industrial equipment |
|
|
|
|
|
|
|
|
|
|
|
